Tags

View and edit the queued tags in this tab.

To create a new tag Tags can be addedbutton on this page, or from an items page, during the receiving process.

Tags are either designated as "On Hold" or "Ready to Print". If tags are on hold they will not print. Shift selected tags from on hold to ready, delete tags, and change the tag type by using the “With Checked:” buttons.

Find and manage tag templates by using thelink highlighted in blue at the bottom of the page.

On this page you can access current tag templates as well as create new ones using the button.

When creating a new tag template you will be taken to a pop-up giving you multiple fields to customize based on your stores preference.

Code

Abbreviated label for in house purposes

Name

Tag Name

Type

Pick from a list of templates created

Dots Per MM

Resolution of the tag, Zebra printers are calibrated at 8 or 12 dots per mm

+/- Xmm

MM shift Left or Right

+/- Ymm

MM shift Up or Down

Tags Across

How many tags per row on a roll.

X Gap mm

Distance between tags on the roll.

Width mm

Width of the tag

Height mm

Height of the tag

Rotation

Tag rotation

Template

Leave Blank.

You can always change the setting by selecting the button on the right hand side of the template list!

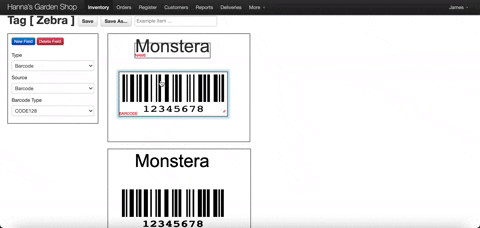

To edit a new or current template layout select the blue button

This page gives you options to insert fields onto the previewed tag layout in real time.

You can even save template examples for future use!
